Tactical Applications

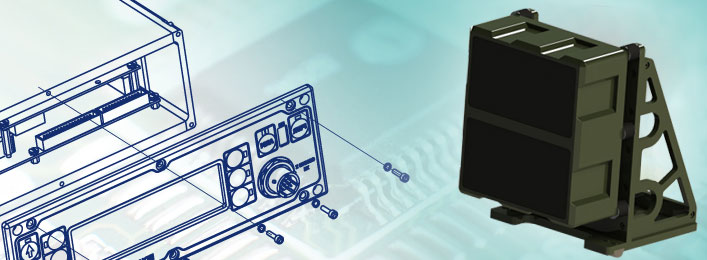

Various models of Muzzle Velocity Radar

Muzzle Velocity measurement significantly improves range accuracy of gunfire.

EDH’s Tactical MV Radars make it possible to have this improvement on the weapon with high accuracy and reliability at low cost.

Various models of Muzzle Velocity Radar are available for different requirements that depend on application (e.g. Artillery, Naval, etc.), gun types, calibre and ammunition, display and fire control system connections, etc.

  • Radar units with separate processor and display units
  • Radar units with integrated processors
  • Display Units integrated with fire control system
  • Shock mounts and brackets
    Cables and connectors
  • Software for equipment control and data display
  • Velocity simulator test equipment

Doppler Radar Velocity Simulator

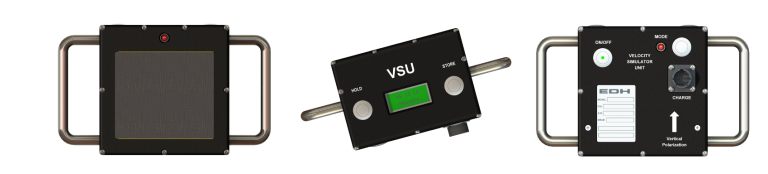

EDH velocity simulator unit (VSU)

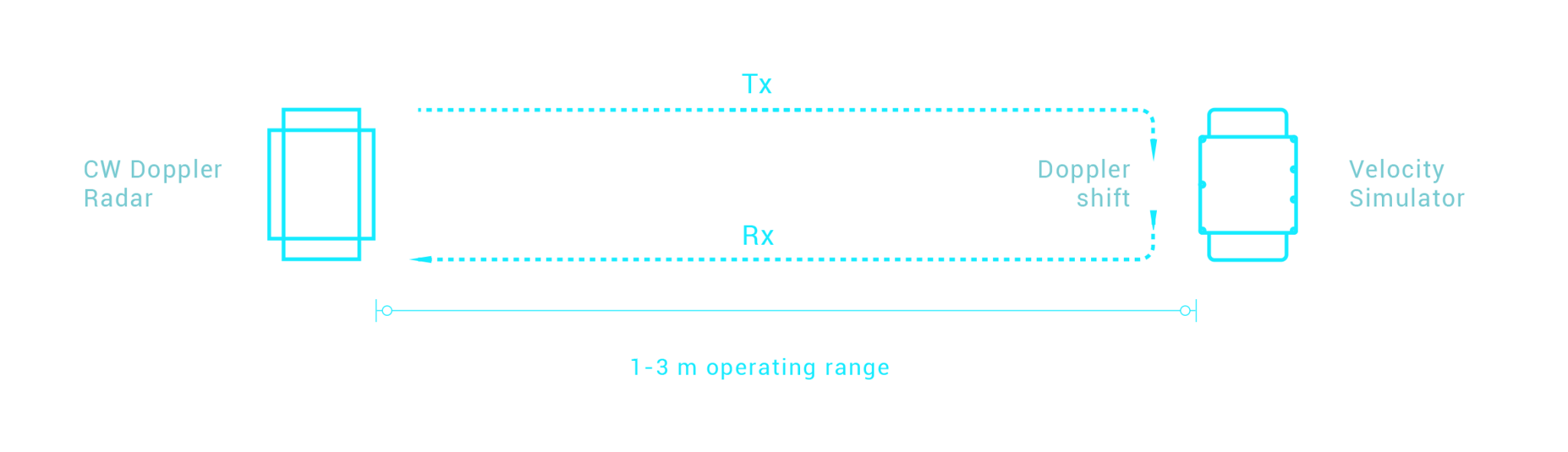

The EDH velocity simulator unit (VSU) is a portable device able to simulate a projectile for any continuous wave X-band doppler radar. The simulator has the ability to directly measure the radar’s antenna’s power and frequency.

Up to 7 user programmable projectiles can be simulated the device and each one’s velocity, retardation, duration, rate of fire and burst length is adjustable.

  • Live weapons/rounds can be substituted with the velocity simulator
  • Training situations of new radar operators
  • Setup of radars before testing commences
  • Routine maintenance – radars can be tested without being dismantled
  • Check functionality of the Muzzle Velocity Radar System
  • Test the accuracy of radars
  • Directly measure the radar’s antenna power and frequency
  • Simulated demonstrations of a radar’s capabilities
Download Pdf
Technical Specification
Microwave Frequency measurement
  • Range 10 to 11 GHz
  • Resolution 0.05 MHz
  • Accuracy 50 ppm
  • Display Increments of 0.1 Mhz
Microwave Power measurement
  • Range 10 to 36 dBm +- 2 dBm
  • Resolution 1dB
  • Display Instantaneous and Peak

Target parameters

Velocity, Retardation, Duration, Rate of fire, Burst length
Simulated Targets
User programmable target types – maximum of 7. Continuous wave, Slow, Very fast, Short burst, Long burst. Selected simulation setting displayed on build-in LCD display.
Calibration
Reference clock output for calibration. Velocity compensated for radar frequency.
Frequency Range
X band (10 – 11 GHz)
Flash detector test output
An optical flash, synchronized with the Doppler signal, is generated for testing flash detector triggers.
Display LCD
(8char x 2 lines)
Power supply
Rechargeable internal battery
Battery life
3 hours for continuous use
Charging supply
100~240VAC 50/60 Hz mains supply
Tripod mount
¼-20 screw thread mount on bottom of unit
Dimensions
125 x 205 x 90 mm (H x W x D)

Mass

1,93 kg

Model

ED-VSU
